CIP #4- Cracking Concrete Surfaces



WHAT are Some Forms of Cracks?

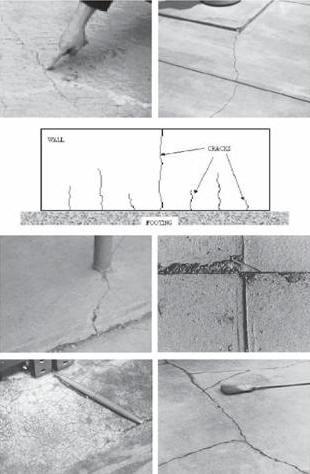

Concrete, like other construction materials, contracts and expands with changes in moisture and temperature, and deflects depending on load and support conditions. Cracks can occur when provisions to accommodate these movements are not made in design and construction. Some common forms of cracks (from top left to bottom right) are:


                1)  Plastic shrinkage cracks (See CIP 5)


                2)  Cracks due to improper jointing (See CIP 6)


                3)  Cracks due to continuous external restraint (Example: Cast-in-place wall restrained along bottom edge of footing)


                4)  Cracks due to lack of an isolation joint (See CIP 6)


                5)  D-Cracks from freezing and thawing


                6)  Craze Cracks (See CIP 3)


                7)  Settlement cracks


Most random cracks that appear at an early age, although unsightly, rarely affect the structural integrity or the service life of concrete. Closely-spaced pattern cracks or D-cracks due to freezing and thawing, that typically appear at later ages, are an exception and may lead to ultimate deterioration.






WHY do Concrete Surfaces Crack?


The majority of concrete cracks occur due to improper design and construction practices, such as:


  ® Omission of isolation and contraction joints and improper jointing practices

  ® Improper subgrade preparation

  ® The use of high-slump concrete or the excessive addition of water on the job

  ® Improper finishing

  ® Inadequate or no curing


HOW can Cracking be Prevented or Minimized?


     All concrete has a tendency to crack, and it is not possible to produce completely crack-free concrete. However, cracking can be reduced

     and controlled if the following basic concreting practices are observed:


 Subgrade and Formwork. All topsoil and soft spots should be removed. The soil beneath the slab should be compacted soil or granular

     fill, well compacted by rolling, vibrating or tamping. The slab, and therefore the subgrade, should be sloped for proper drainage. In

     winter, remove snow and ice prior to placing concrete and do not place concrete on a frozen subgrade. Smooth, level subgrades help

     prevent cracking. All formwork must be constructed and braced so that it can withstand the pressure of the concrete without movement.

     Vapor retarders directly under a concrete slab increase bleeding and greatly increase the potential for cracking, especially with high-

     slump concrete. When a vapor retarder is used, cover it with 3 to 4 inches of a compactable granular fill, such as a crusher-run material

     to reduce bleeding. Immediately prior to concrete placement, lightly dampen the subgrade, formwork, and the reinforcement if

     severe drying conditions exist.


  Concrete. In general, use concrete with a moderate slump (not over 5 inches [125 mm]). Avoid re-tempering concrete to increase

     slump prior to placement. Higher slump (up to 6 or 7 inches [150 to 175 mm]) can be used provided the mixture is designed to produce

     the required strength without excessive bleeding and/or segregation. This is generally accomplished by using water-reducing admixtures.

     Specify air-entrained concrete for outdoor slabs subjected to freezing weather (See CIP 2).


 Finishing. Initial screeding must be promptly followed by bull floating. DO NOT perform finishing operations with water present on the

     surface or before the concrete has completed bleeding. Do not overwork or over-finish the surface. For better traction on exterior

     surfaces, use a broom finish. When ambient conditions are conducive to a high evaporation rate, use means to avoid rapid

     drying and associated plastic shrinkage cracking by using wind breaks, fog sprays, and covering the concrete with wet burlap

     or polyethylene sheets between finishing operations.


 Curing. Curing is an important step to ensure durable crack-resistant concrete. Start curing as soon as possible. Spray the surface with

     liquid membrane curing compound or cover it with damp burlap and keep it moist for at least 3 days. A second application of curing

     compound the next day is a good quality assurance step.


  Joints. Anticipated volumetric changes due to temperature and/or moisture should be accommodated by the construction of contraction

     joints by sawing, forming, or tooling a groove about ¼ to ⅓ the thickness of the slab, with a spacing between 24 to 36 times the

     thickness. Tooled and saw-cut joints should be run at the proper time (CIP 6). A maximum 15 feet spacing for contraction joints is often

     recommended. Panels between joints should be square and the length should not exceed about 1½ times the width. Isolation joints should

     be provided whenever restriction to freedom of either vertical or horizontal movement is anticipated—such as where floors meet walls,

     columns, or footings. These are full-depth joints and are constructed by inserting a barrier of some type to prevent bond between the slab

     and the other elements.


  Cover Over Reinforcement. Providing sufficient concrete cover (at least 2 inches [50 mm]) to keep salt and moisture from contacting

     the steel should prevent cracks in reinforced concrete caused by the expansion of rust on reinforcing steel.




Follow These Rules to Minimize Cracking


1.    Design the members to handle all anticipated loads.


2.    Provide proper contraction and isolation joints.


3.    In slab on grade work, prepare a stable subgrade.


4.    Place and finish according to recommended and established practices.


5.    Protect and cure the concrete properly.







1.   Control of Cracking in Concrete Structures, ACI 224R, American Concrete Institute, Farmington Hills, MI.

2.   Guide for Concrete Floor and Slab Construction, ACI 302.1R, American Concrete Institute, Farmington Hills, MI.

3.   Concrete Slab Surface Defects: Causes, Prevention, Repair, IS 177, Portland Cement Association, Skokie, IL.

4.   Grant T. Halvorson, Troubleshooting Concrete Cracking During Construction, Concrete Construction, October 1993.

5.   Cracks in Concrete: Causes, Prevention, Repair, A collection of articles from Concrete Construction Magazine, June 1973.


1978, 1989, 1998
